30KN Tensile Strength Measuring Instrument Electronic Tensile Testing Machine

Place of Origin : Shandong, China (Mainland)

Brand Name : Marxtest

Model Number : ETM-30KN

Price : US $4,300-6,300 / Sets | 1 Set/Sets (Min. Order)

MOQ : 1 Set/Sets

Power : Electronic

Usage : Tensile Testing Machine

Standard : ASTM D4855/D6639

Max. compression space : 800 mm

Effective test width : 400 mm

Testing Speed : 0.001 - 1000 mm/min

Contact Now

30KN Tensile Strength Measuring Instrument Electronic Tensile Testing Machine

Description

Title goes here.

Marxtest offers suitable testing systems to determine the strengths and properties of all types of geotextiles and geogrids. The systems include special fixtures and software for performing tests such as tensile and tear tests, seam testing, puncture testing (including CBR), etc. These systems have been specially designed to perform tests to international standards. A non-contact video extensometer is available for accurate determination of strain.

Main Features

Amy: info @ marxtest.com Whatsapp / Mob: +86 17686660670

ETM 30KN - 100KN Tensile Testing Machine

Parameters Model

ETM 30-100KN

Max. Load

30-100KN

Accuracy

0.5 class/1 class

Load range

2%～100%F·S/0.2%-100% FS

Displacement Resolution

0.01mm

Test speed

0.001-600mm/min

Tensile space

700mm

Test Width

450mm

Power supply

AC220V±10%,50Hz

Accessory

Tensile Grip

Power

0.4kw/0.75kw/2kw

Size

940x520x1850mm


2. Test capability of machine and relevant Standard:
ASTM E8 - 16Standard Test Methods for Tension Testing of Metallic Materials
ISO 6892-1 Materials --tensile testing
ASTM D638

Application Industries

Universal Tensile Strength Testing Machine, Tensile Tester is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.

Main features of Universal Tensile Strength Testing Machine, Tensile Tester

1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highlyimprove the loading efficience and structure rigidity.

2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.

3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation

4. Data transmission: RS232, and displacement resolution: 0.001mm

5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.


Product Tags:

digital universal testing machine



electronic universal testing machine


Best 30KN Tensile Strength Measuring Instrument Electronic Tensile Testing Machine wholesale

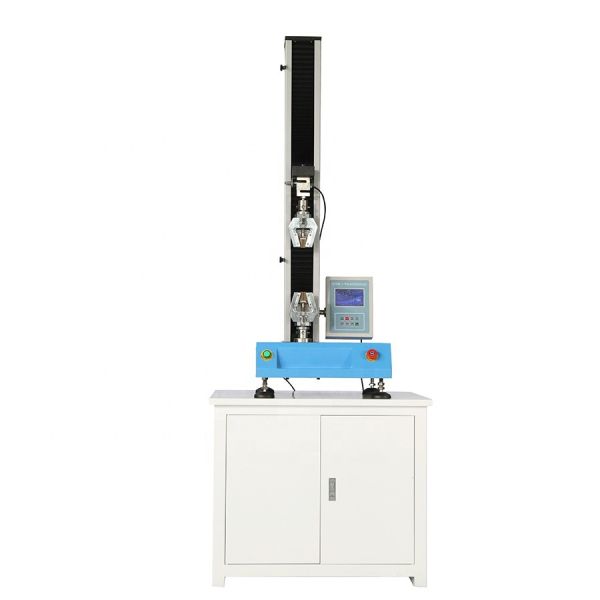

30KN Tensile Strength Measuring Instrument Electronic Tensile Testing Machine Images
