5KN Single Arm and Double Arm Universal Testing Machine With Extensometer Shandong Universal Testing Equipment

Product Categories
SUZHOU KING ENTER IMPORT AND EXPORT CO., LTD.
Contact Now

5KN Single Arm and Double Arm Universal Testing Machine With Extensometer Shandong Universal Testing Equipment

Brand Name : OEM / KINGENTER

Model Number : ETM-5

Certification : ISO CE SGS

Place of Origin : China (Mainland)

MOQ : 1 Set/Sets

Price : US $3,700-5,500 / Sets | 1 Set/Sets (Min. Order)

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 350 Set/Sets per Month

Delivery Time : 10 days

Packaging Details : plywood packing

Application : Metal & Non-metal

Load accuracy : Class 1 (class 0.5 optional)

Crosshead travel : 1100mm

Power supply : 220V/50Hz (can optional)

Max. load : 1KN 3KN 5KN

Load range : 1%-100% FS (0.4%-100% FS optional)

Tensile space(mm): : 900mm

Contact Now

5KN Single Arm and Double Arm Universal Testing Machine With Extensometer Shandong Universal Testing Equipment
Technology Parameters
Model
ETM-5
Max. load
5KN
Structure
Single column
Control method
Computer control
Load accuracy
Class 1 (class 0.5 optional)
Load range
1%-100% FS (0.4%-100% FS optional)
Deformation measurement range
0.2%-100%
Displacement Resolution
0.01mm
Test speed
0.05-1000mm/min
Crosshead travel space(mm)
1100
Tensile space(mm)
900
Power supply
AC220V±10%,50Hz
Grips
Corrugated grip
Dimension
450*400*1680mm
Extensometer
Electronic Extensometer optional
Weight
Around 110 kg
Features

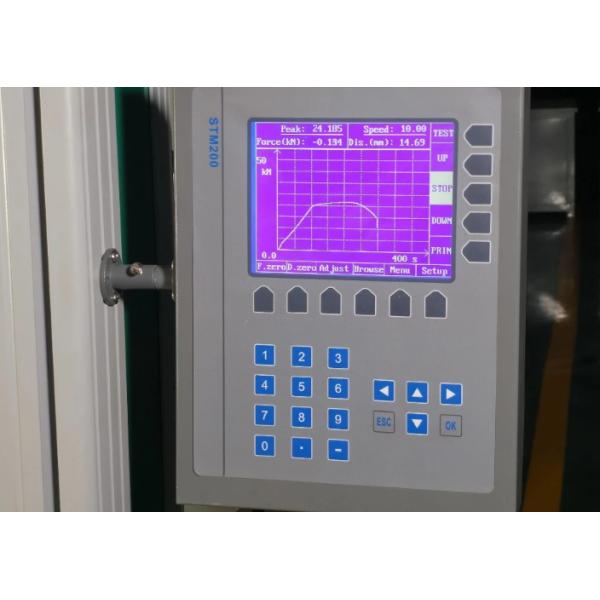

1) Computer + Software control and display 6 kinds test curves: Force-displacement, force-deformation, stress-displacement, stress-deformation,force-time,displacement-time
2) Can be installed extensometer to test deformation of rubber or metal material
3) Can do high temperature test by high temperature oven and furnace
4) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures
5) Can be customized height, width, and follow any test standard or customer request
6) Also have Digital Display Type.
5KN Single Arm and Double Arm Universal Testing Machine With Extensometer Shandong Universal Testing Equipment
5KN Single Arm and Double Arm Universal Testing Machine With Extensometer Shandong Universal Testing Equipment

FAQ:

1. Are your company a trading one or a factory?
Factory + trading company (integration), 21 years focusing on test instruments field, 15 years exporting experience.

2. After an order is placed, when to delivery?
Generally about 15 working days, If we have inventory, we can arrange shipment within 3 working days.
Please be aware that our production lead times depend on specific items and item quantities.

3. What about the warranty with after - sales services?
12 months warranty after delivery. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in
a professional and timely.

4. What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other required standards.
