Plastic Material Tensile Compression Testing Machine With Single Column

Name: Plastic Material Tensile Compression Testing Machine With Single Column
Brand: OEM / KINGENTER
Price: 1 USD

Best Plastic Material Tensile Compression Testing Machine With Single Column wholesale

Brand Name : OEM / KINGENTER

Model Number : WDW

Certification : ISO , SGS , CE

Place of Origin : China (Mainland)

MOQ : 1 Set/Sets

Price : US $3,800-4,800 / Sets | 1 Set/Sets (Min. Order)

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 350 Set/Sets per Month

Delivery Time : 8-10days

Packaging Details : plywood packing

Product name : Universal compression testing machine

Load range : 1%-100%FS (0.4%-100%FS optional)

Tensile space : 900m

Power : Electronic

Application : Metal & Non-metal

Load Accuracy : Class 1 (class 0.5 optional)

Crosshead travel : 1100mm

Contact Now

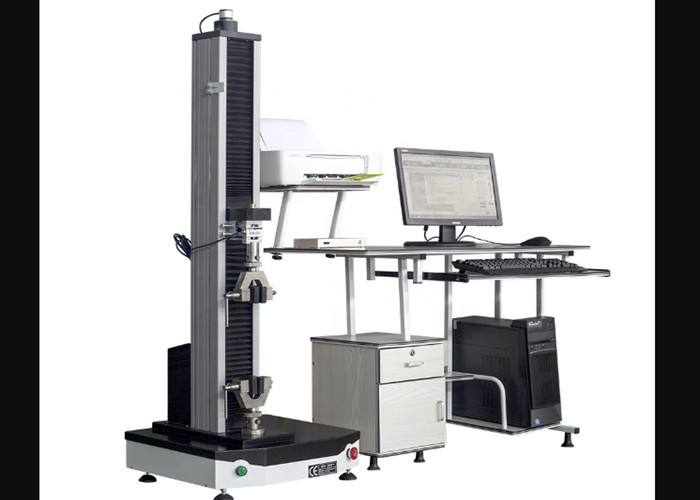

Single Column Electromechanical Universal Plastic Material Tensile Compression Testing Machine

1. Application

The single column series testing machine is designed and produced for the tensile, compression, peel,and bending tests of the rubbers, plastics, thin films or other materials. And it is also used for the performance tests of the thin metal, wire, fiber, elastomer, foam materials. This type machine is mainly for the tensile testing of mortar

2. Technical Parameters

Model	ETM-1 ETM-2 ETM-3
Max. load	1KN 2KN 3KN
Structure	Single column
Control method	Computer control
Load accuracy	Class 1 (class 0.5 optional)
Load range	1%-100% FS (0.4%-100% FS optional)
Deformation measurement range	0.2%-100%
Displacement Resolution	0.01mm
Test speed	0.05-1000mm/min
Crosshead travel space	1100mm
Tensile space	900mm
Power supply	AC220V±10%,50Hz

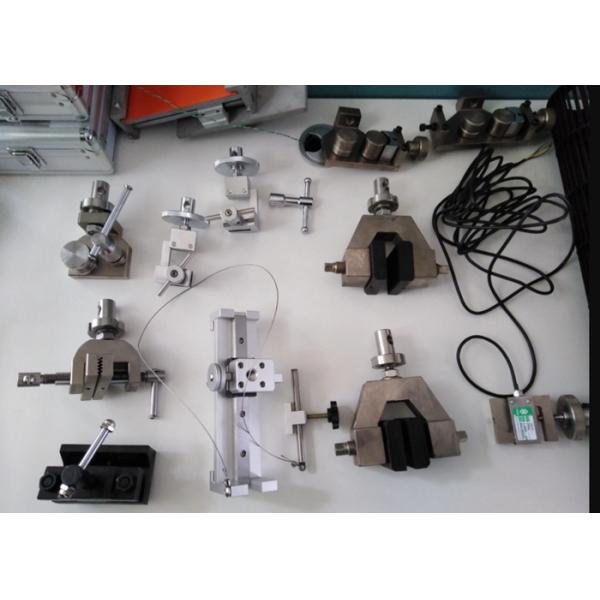

Grips	Corrugated grip
Dimension	4504001680mm
Extensometer	Electronic Extensometer optional
Weight	Around 110 kg

Plastic Material Tensile Compression Testing Machine With Single Column

FAQ:

1. Are your company a trading one or a factory?
Factory + trading company (integration), 21 years focusing on test instruments field, 15 years exporting experience.

2. After an order is placed, when to delivery?
Generally about 15 working days, If we have inventory, we can arrange shipment within 3 working days.
Please be aware that our production lead times depend on specific items and item quantities.

3. What about the warranty with after - sales services?
12 months warranty after delivery. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in
a professional and timely.

4. What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other required standards.
